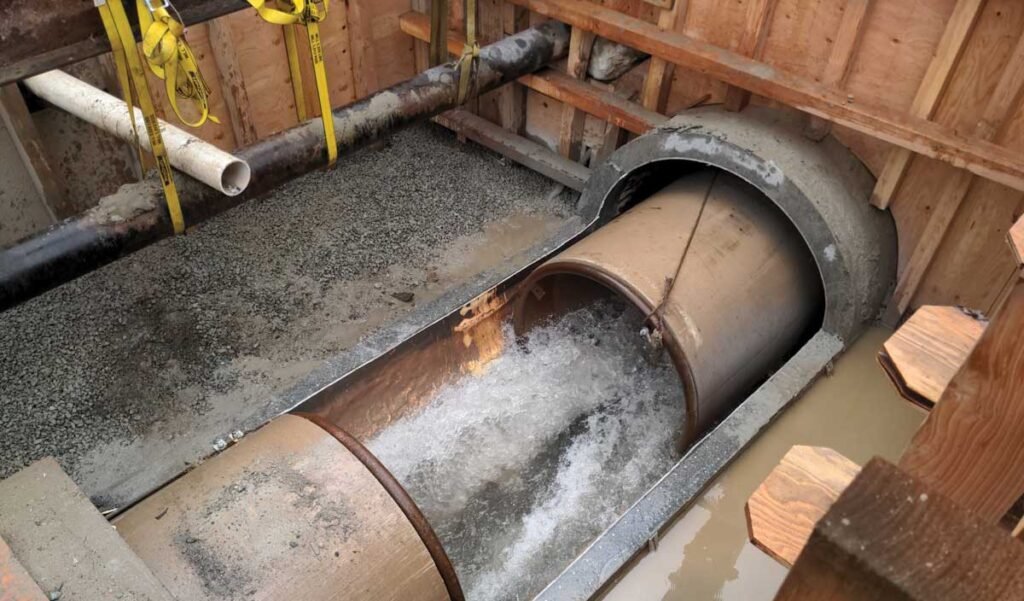

Advances in Trenchless Pipeline Rehabilitation Techniques: Cutting-Edge Solutions for Infrastructure Renewal

Trenchless pipeline rehabilitation has transformed how we fix aging underground infrastructure. This approach allows repairs without extensive digging, saving time and money. New techniques have made the process more efficient and effective.

Trenchless technology now includes methods like pipe lining, pipe bursting, and directional drilling, which minimize surface disruption and environmental impact. These advances help cities and utilities maintain critical services while reducing inconvenience to the public.

Recent innovations have improved the materials and equipment used in trenchless rehabilitation. Better resins, stronger liners, and more precise robotic systems have extended the lifespan of repaired pipelines. These developments promise to make underground infrastructure more durable and cost-effective in the long run.

Key Takeaways

• Trenchless methods reduce surface disruption and costs for pipeline repairs
• New techniques like pipe lining and directional drilling improve efficiency
• Advanced materials and robotics extend the lifespan of rehabilitated pipelines

Evolution of Trenchless Pipeline Rehabilitation

Trenchless pipeline rehabilitation has grown from simple methods to advanced techniques. These changes have made fixing underground pipes faster, cheaper, and less disruptive.

Historical Context of Trenchless Rehabilitation

Trenchless pipeline rehabilitation began in the 1970s with cured-in-place pipe lining. This method fixed pipes without digging them up. Workers inserted a resin-soaked liner into damaged pipes and cured it in place.

Read moreAmmonia In Wastewater Discharge

In the 1980s, pipe bursting became popular. It broke old pipes while pulling new ones through. This method worked well for water and sewer lines.

The 1990s saw more trenchless options emerge. Sliplining and spray-on linings gained use. These methods fixed different pipe types and sizes.

Recent Developments in Trenchless Techniques

Today’s trenchless methods are more advanced. New materials make linings stronger and last longer. Spiral wound linings can fix oddly shaped pipes. They work in pipes from 6 inches to over 42 inches wide.

Smart robots now inspect pipes from the inside. They find problems before they get worse. This helps plan better fixes.

UV light curing is a new method for pipe linings. It’s faster than older heat curing methods. It also uses less energy.

Read moreWhat Is Tss In Wastewater Treatment

3D printing is an exciting new area. Some companies are testing 3D printed linings for pipes. This could make custom repairs easier in the future.

Understanding Trenchless Technology

Trenchless technology revolutionizes pipeline repair and installation. It minimizes surface disruption and offers cost-effective solutions for underground infrastructure maintenance.

Key Concepts and Terminology

Trenchless technology refers to methods that repair or install underground pipes with minimal surface excavation. Common techniques include:

• Cured-in-place pipe (CIPP): A resin-saturated liner inserted into existing pipes and cured in place.

• Pipe bursting: A new pipe is pulled through and expands the old pipe.

Read moreWastewater Grinders: Essential Equipment for Efficient Sewage Management

• Horizontal directional drilling (HDD): Creates a new underground path for pipes.

• Sliplining: Inserting a smaller diameter pipe into an existing larger pipe.

These trenchless applications offer a comprehensive toolbox for pipeline rehabilitation. They address various issues like corrosion, leaks, and structural defects in aging infrastructure.

Comparative Analysis of Traditional vs. Trenchless Methods

Traditional open-cut methods involve extensive digging, while trenchless techniques require minimal excavation. Key differences include:

1. Surface disruption: Trenchless methods cause less damage to roads, landscaping, and structures.
2. Cost: Trenchless options often have lower overall costs due to reduced restoration needs.
3. Time: Trenchless projects typically complete faster than traditional excavation.
4. Environmental impact: Less soil disturbance and fewer emissions from heavy equipment.
5. Safety: Reduced risks associated with open trenches and heavy machinery.

Trenchless methods prove especially valuable in urban areas or locations with limited access. They provide efficient solutions for maintaining critical infrastructure with minimal community disruption.

Methods of Trenchless Rehabilitation

Trenchless rehabilitation techniques offer cost-effective solutions for repairing damaged pipelines without extensive excavation. These methods restore structural integrity and improve flow capacity.

Cured-in-Place Pipe (CIPP)

CIPP is a popular trenchless rehabilitation method. It involves inserting a resin-impregnated liner into the existing pipe.

The liner is then cured using heat or UV light. This creates a new pipe within the old one.

CIPP can repair pipes ranging from 4 to 120 inches in diameter. It’s suitable for various materials, including clay, concrete, and metal.

Benefits of CIPP:

• Minimal surface disruption
• Quick installation
• Long-lasting results (50+ years)
• Smooth interior surface improves flow

CIPP works well for sewer, stormwater, and water mains. It can navigate bends and handle changes in pipe diameter.

Pipe Bursting

Pipe bursting replaces old pipes with new ones of equal or larger diameter. A bursting head breaks the existing pipe while pulling in a new one.

This method is ideal for:

• Upsizing pipes
• Replacing severely damaged pipes
• Pipes 2 to 48 inches in diameter

Pipe bursting requires access pits at both ends of the section. It works with various pipe materials.

Advantages:

• Can increase pipe capacity
• Replaces entire pipe, not just a liner
• Suitable for high-pressure applications

Limitations include the need for temporary service bypass and potential utility conflicts.

Slip Lining

Slip lining inserts a smaller diameter pipe into the existing one. The new pipe is pulled or pushed through the old pipe.

This method is best for:

• Straight pipe sections
• Minimal reduction in pipe diameter
• Pipes 4 inches and larger

Slip lining uses HDPE, PVC, or fiberglass pipes. The space between old and new pipes is often grouted.

Benefits:

• Simple installation
• Cost-effective for long pipe runs
• Minimal equipment needed

Drawbacks include reduced pipe capacity and the need for man-entry in larger pipes.

Spiral Wound Pipe

Spiral wound pipe rehabilitation uses a continuous strip of PVC profile. The strip is wound into a spiral shape inside the existing pipe.

Key features:

• Custom diameters from 6 to 200 inches
• Minimal loss of pipe capacity
• Can be installed in live flow conditions

The winding machine sits in a manhole, feeding the profile into the pipe. Interlocking edges create a watertight seal.

Advantages:

• No chemicals or resins used
• Adjustable diameter during installation
• Smooth interior improves flow

This method works well for circular and non-circular pipes. It’s suitable for gravity and low-pressure systems.

Technological Advancements

New technologies are transforming pipeline rehabilitation. Better materials, robots, inspection tools, and digital mapping are making repairs faster, cheaper, and less disruptive.

Innovative Materials and Resins

Trenchless technology has led to improved pipe rehabilitation materials. Advanced resins and liners are more durable and flexible. They can withstand higher pressures and temperatures.

Nano-enhanced composites offer better strength and chemical resistance. Some new liners cure faster, reducing installation time. Self-healing materials can fix small cracks automatically.

Spray-on coatings protect against corrosion and abrasion. They extend pipe lifespans significantly. Green materials made from recycled plastics are becoming more common.

Robotics in Pipeline Rehabilitation

Robots are changing pipeline repair work. Remote-controlled devices can travel through pipes to apply coatings or perform repairs. Some robots use high-pressure water jets to clean pipe walls.

Cutting-edge robots can install liners or repair joints without human entry. This improves safety and reduces labor costs. Advanced sensors help robots navigate and identify problem areas.

Some robots can even perform minor repairs autonomously. Machine learning allows robots to adapt to different pipe conditions. As robot technology improves, more complex repairs become possible.

Advancement in Inspection Technologies

New tools make pipeline inspection faster and more accurate. High-resolution cameras provide detailed views of pipe interiors. Sonar and laser profiling create 3D maps of pipe surfaces.

Ground-penetrating radar can detect voids around pipes. Acoustic sensors listen for leaks or weak spots. Electromagnetic tools find corrosion in metal pipes.

Drones equipped with sensors inspect hard-to-reach areas. Data analytics help predict future pipe failures. This allows for proactive maintenance before problems occur.

GIS Integration and Digital Mapping

Geographic Information Systems (GIS) improve pipeline management. Digital maps show pipe locations, ages, and conditions. This helps planners choose the best rehabilitation methods.

Real-time data from sensors updates these maps constantly. Augmented reality displays pipe information to field workers. This reduces errors and speeds up repairs.

3D modeling helps visualize underground infrastructure. It aids in planning complex rehabilitation projects. Cloud-based systems allow easy data sharing between teams.

Challenges and Considerations

Trenchless pipeline rehabilitation faces several key hurdles. These include environmental concerns, financial feasibility, and regulatory compliance. Each aspect requires careful planning and assessment to ensure successful project outcomes.

Environmental Impact Assessment

Trenchless methods aim to minimize surface disruption, but environmental effects still need evaluation. Noise and vibration from equipment can disturb nearby residents and wildlife. Trenchless technology may impact groundwater and soil conditions.

Project teams must assess potential contamination risks. They should plan for proper disposal of excavated materials. Air quality impacts from dust and emissions require mitigation strategies.

Habitat protection is crucial, especially in sensitive areas. Teams should schedule work to avoid breeding seasons of local species. They must also have plans to handle unexpected environmental issues that arise during construction.

Cost-benefit Analysis

Trenchless methods often have higher upfront costs than traditional open-cut techniques. However, they can offer long-term savings. Reduced surface restoration and shorter project timelines contribute to cost effectiveness.

Factors to consider in the analysis:

• Equipment and material costs
• Labor requirements and specialized training
• Project duration and productivity rates
• Indirect costs (traffic disruption, business impacts)
• Long-term maintenance savings

A thorough cost-benefit analysis helps justify the investment in trenchless methods. It should account for both immediate expenses and future benefits over the pipeline’s lifespan.

Regulatory and Compliance Issues

Trenchless projects must navigate complex regulatory landscapes. Local, state, and federal permits may be required. Environmental protection laws often apply, even with minimal surface disturbance.

Key compliance areas include:

• Water quality protection
• Noise pollution limits
• Work hour restrictions
• Safety regulations for confined space entry

Underground utility construction requires careful coordination with existing infrastructure owners. Accurate utility mapping and damage prevention protocols are essential.

Project managers must stay updated on changing regulations. They should engage early with regulatory bodies to streamline the approval process. Proper documentation and reporting throughout the project helps ensure ongoing compliance.

Project Planning and Execution

Successful trenchless pipeline rehabilitation requires careful planning and execution. Key steps include thorough inspections, effective project management, and rigorous quality control measures.

Pre-rehabilitation Inspection and Planning

Trenchless pipeline rehabilitation techniques start with a detailed inspection of the existing infrastructure. This involves using advanced technologies like CCTV cameras and sonar to assess pipe conditions. Engineers analyze this data to determine the best rehabilitation method.

The planning phase includes:

• Selecting appropriate materials and equipment
• Developing a timeline for minimal disruption
• Creating safety protocols for workers and the public
• Obtaining necessary permits and approvals

Proper planning helps avoid costly delays and ensures the project meets all regulatory requirements.

Project Management Strategies

Effective project management is crucial for trenchless rehabilitation success. Project managers coordinate various teams, including engineers, contractors, and local authorities.

Key project management tasks include:

• Scheduling work to minimize service interruptions
• Managing budgets and resources efficiently
• Communicating with stakeholders regularly
• Adapting to unexpected challenges quickly

Good project managers anticipate potential issues and have contingency plans ready. They also ensure all team members understand their roles and responsibilities.

Quality Assurance and Control

Quality assurance and control are vital for ensuring the longevity and effectiveness of rehabilitated pipelines. This process involves regular inspections and testing throughout the project.

Important quality control measures include:

• Checking material specifications before installation
• Monitoring installation processes in real-time
• Conducting post-installation pressure tests
• Performing final CCTV inspections

Engineers use specialized equipment to verify that the rehabilitated pipeline meets all design specifications. Any defects or issues are addressed promptly to maintain the integrity of the rehabilitation work.

Future of Pipeline Rehabilitation

Pipeline rehabilitation is moving towards smarter, more sustainable solutions. New technologies and global market shifts are shaping the industry’s future. These changes aim to make pipeline repairs faster, cheaper, and more eco-friendly.

Emerging Trends and Potential Innovations

Smart sensors and AI are set to change pipeline maintenance. These tools can spot problems early, before they become serious. This helps save money and prevents service disruptions.

Cured-in-place pipe (CIPP) methods are getting better. New materials make pipes stronger and last longer. Some new liners can even heal small cracks on their own.

Robots are becoming more common in pipeline work. They can inspect pipes from the inside and even do small repairs. This means less digging and faster fixes.

3D printing might soon be used to make custom pipe parts on-site. This could speed up repairs and reduce the need to transport heavy materials.

Sustainability and Trenchless Rehabilitation

Green materials are a big focus for future pipeline fixes. New liners and resins are being made from recycled or plant-based materials. These are better for the environment and often work just as well as traditional options.

Energy use is another area for improvement. New equipment uses less power, cutting down on fuel costs and emissions. Some companies are even trying out electric-powered machinery for trenchless work.

Water use is also being reduced in pipeline rehab. New cleaning methods use less water, and some fixes don’t need water at all. This is especially important in areas where water is scarce.

Global Market Projections

The trenchless technology market is expected to grow fast in the coming years. More cities are choosing trenchless methods to fix old pipes without disrupting traffic or businesses.

Asia and Africa are likely to see the biggest growth. These regions have many old pipes that need fixing and are investing in new infrastructure.

New rules about water quality and leak prevention are pushing the market forward. Companies that offer eco-friendly solutions are likely to do well.

The COVID-19 pandemic has slowed some projects, but the long-term outlook is still strong. As cities focus on improving their infrastructure, trenchless methods will play a key role.

Frequently Asked Questions

Trenchless pipeline rehabilitation offers innovative solutions for repairing and upgrading underground infrastructure. These methods minimize surface disruption and provide cost-effective alternatives to traditional excavation.

What are the different trenchless technologies used for sewer rehabilitation?

Common trenchless technologies for sewer rehabilitation include cured-in-place pipe (CIPP), sliplining, pipe bursting, and spray-in-place pipe. Each method has unique advantages and is suited for different pipe conditions and project requirements.

CIPP involves inserting a resin-impregnated liner into the existing pipe and curing it in place. Sliplining uses a smaller diameter pipe inserted into the damaged one. Pipe bursting breaks the old pipe while simultaneously installing a new one.

How does cured-in-place pipe (CIPP) repair work?

CIPP repair begins with cleaning and inspecting the damaged pipe. A flexible liner soaked in resin is then inserted into the pipe. The liner is inflated and pressed against the pipe walls.

Heat or UV light is applied to cure the resin, forming a new pipe within the old one. Once cured, the ends are trimmed, and service connections are reopened. This creates a seamless, structurally sound pipe without extensive digging.

What are the advantages of trenchless pipe rehabilitation compared to traditional methods?

Trenchless methods cause less surface disruption, reducing impact on traffic and businesses. They are often faster and more cost-effective than traditional excavation.

These techniques can extend the life of existing infrastructure without full replacement. They also minimize environmental impact and can be used in areas where excavation is difficult or impossible.

What considerations are taken into account when choosing a method for trenchless pipeline rehabilitation?

Engineers consider factors such as pipe material, diameter, length, and condition. They also assess soil conditions, depth, and nearby utilities.

Project goals, budget constraints, and timeline are important factors. The level of structural repair needed and any regulatory requirements also influence the chosen method.

Can trenchless rehabilitation techniques be applied to all types of pipes?

Most trenchless techniques can be used on various pipe materials, including clay, concrete, and metal. However, some methods are better suited for certain materials or diameters.

CIPP, for example, is versatile and can be used in many pipe types. Pipe bursting works well for brittle pipes but may not be suitable for reinforced concrete pipes.

What is the expected lifespan of a trenchlessly rehabilitated pipeline?

The lifespan of a rehabilitated pipeline depends on the method used and the quality of installation. Many trenchless solutions can extend pipe life by 50 years or more.

CIPP liners, when properly installed, can last 50-100 years. Sliplining and pipe bursting solutions often have similar lifespans to new pipes, typically 50-100 years with proper maintenance.
