The Comprehensive Guide to Ceramic Membrane Filtration Systems

Introduction

Read moreSuperhydrophobic Membrane Distillation

Water and wastewater treatment are crucial for a variety of industries including pharmaceuticals, food and beverage, and municipal water services. Among the plethora of filtration techniques available, ceramic membrane filtration systems have emerged as a robust, versatile, and efficient solution. This article aims to provide a thorough understanding of ceramic membrane filtration systems, elucidating their working principles, advantages, limitations, and applications.

What is a Ceramic Membrane Filtration System?

Read moreDifferent Types Of Water Filtration Systems

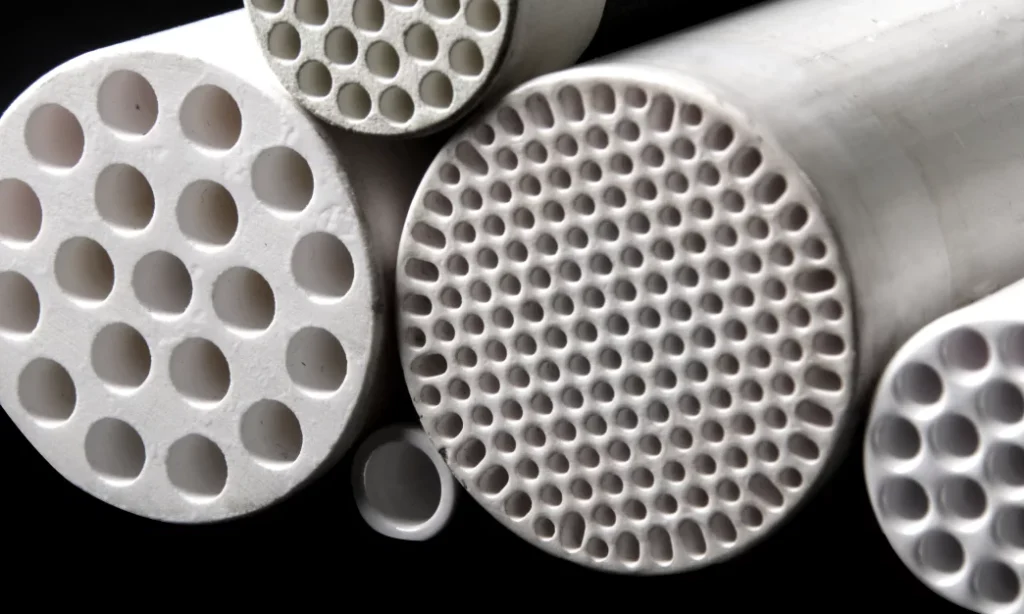

A ceramic membrane filtration system employs ceramic materials, predominantly aluminum oxide, zirconium oxide, or titanium oxide, to filter particulates, microorganisms, and macro molecules from liquids. These systems leverage the porous nature of ceramic materials to enable selective permeability, allowing only specific sized particles to pass through. They find applications in microfiltration (MF), ultrafiltration (UF), nanofiltration (NF), and sometimes in reverse osmosis (RO).

Working Principle

The core principle of ceramic membrane filtration relies on pressure-driven separation. Here’s a step-by-step breakdown of the mechanism:

1. Feed Introduction: The feed solution, which could be any liquid requiring filtration, is introduced under pressure into the system.

2. Permeation: As the liquid flows through the ceramic membrane, particles larger than the membrane’s pore size are retained on the surface or within the pores, forming a ‘cake layer.’

3. Filtration Phases: The filtrate, also known as permeate, is the liquid that passes through the membrane. There are two primary filtration modes:

   • Dead-End Filtration: The feed is directed against the membrane, and materials larger than the pore size are retained.
   • Cross-Flow Filtration: The feed flows parallel to the membrane surface, reducing fouling and extending membrane life.

4. Permeate Collection: The filtered liquid or permeate is collected on the opposite side of the ceramic membrane.

5. Cleaning: Periodically, backwashing or chemical cleaning is used to remove the fouling layer and restore membrane performance.

Types of Ceramic Membranes

Ceramic membranes are categorized based on their pore sizes:

• Microfiltration (MF): Pore sizes range between 0.1 to 1.0 micrometers. Ideal for removing particulates, bacteria, and suspended solids.

• Ultrafiltration (UF): Pore sizes range between 0.01 to 0.1 micrometers. This is suitable for removing viruses, macromolecules, and small colloids.

• Nanofiltration (NF): Pore sizes range from 1 to 10 nanometers. They are effective for removing multivalent ions and small organic molecules.

• Reverse Osmosis (RO): Not necessarily made from ceramic materials but worth mentioning for completeness. These have the smallest pore sizes (< 1 nanometer) and are used for desalination and removing monovalent ions.

Materials Used

Ceramic membranes are made from inorganic substances called ceramics, offering unique properties such as thermal stability, chemical resistance, and high mechanical strength. The commonly used materials include:

• Alumina (Al2O3): High strength and chemical resistance.

• Zirconia (ZrO2): Provides higher thermal stability.

• Titania (TiO2): Known for high filtration efficiency and chemical resistance.

Advantages of Ceramic Membrane Filtration Systems

1. Durability: Ceramic membranes are highly durable and can withstand harsh operating conditions, including extreme pH levels, high temperatures, and pressures.

2. Chemical Resistance: Inorganic nature imparts significant resistance to chemical attack, making them suitable for aggressive feed streams.

3. Thermal Stability: These membranes can operate effectively over a wide temperature range, something not always possible with polymeric membranes.

4. High Filtration Efficiency: Capable of achieving very high degrees of separation, from microfiltration to nanofiltration.

5. Longevity: Ceramic membranes have a longer operational life compared to polymeric membranes, often lasting several years before needing replacement.

6. Backwashable: The ability to undergo backwash cleaning helps in maintaining permeability and reducing fouling.

Disadvantages

1. Cost: Higher initial cost compared to polymeric membranes can be a barrier.

2. Brittleness: Ceramic materials can be brittle and susceptible to cracking under mechanical stress.

3. Heavy: These membranes are often heavier, requiring more robust infrastructure for installation and operation.

Applications

Ceramic membrane filtration systems are employed across various sectors due to their robustness and efficiency. Some significant applications include:

1. Water and Wastewater Treatment

   • Municipal Water Treatment: Removal of bacteria, viruses, and suspended solids from drinking water.
   • Industrial Wastewater: Treatment of effluents from industries such as textiles, dyes, and chemicals.

2. Food and Beverage

   • Milk and Dairy Processing: Separation of bacteria and other impurities.
   • Juice Clarification: Removal of pectin and other colloidal substances.

3. Biotechnology and Pharmaceutical

   • Cell Harvesting and Product Recovery: Efficient separation of cellular components and purification of bioproducts.

4. Chemical Processing

   • Catalyst Recovery: Recapture of valuable catalysts from reaction mixtures.
   • Solvent Purification: Separation and purification of organic solvents in chemical synthesis.

5. Oil and Gas

   • Produced Water Treatment: Removal of hydrocarbons, suspended solids, and other contaminants from produced water in hydrocarbon extraction.

Case Studies and Examples

Case Study 1: Municipal Water Treatment in Tokyo, Japan

The Tokyo Metropolitan Government employs ceramic membrane filtration systems to safeguard its municipal water supply. With a population exceeding 13 million, the city’s water treatment plants use ceramic membranes to provide consistently safe and clean drinking water, achieving high removal rates of bacteria, viruses, and particulates. Regular backwashing and chemical cleaning protocols have enhanced operational efficiency, leading to cost savings in the long run despite the initial higher investment.

Case Study 2: Milk Processing in Arla Foods, Denmark

Arla Foods, a leading dairy producer in Denmark, utilizes ceramic membranes for bacteria removal and ensuring the sterility of milk products. The non-reactive nature of ceramic materials ensures no leaching into milk, making it an excellent choice for food-grade applications. The system’s resilience to high temperatures also allows steam sterilization, ensuring a sterile environment for milk processing.

Recent Trends and Innovations

As the demand for higher efficiency and smaller environmental footprints continues to grow, the field of ceramic membrane filtration systems is witnessing several innovations:

1. Hybrid Membranes: Combining ceramic membranes with polymeric materials or incorporating nanomaterials like graphene to enhance filtration efficiency and reduce fouling tendencies.

2. Adaptive Filtration Systems: Developing systems that can adapt the pore sizes dynamically based on real-time water quality data to optimize filtration processes.

3. Sustainable Processes: Research is underway to develop more sustainable manufacturing processes for ceramic membranes, aiming to reduce the environmental footprint associated with their production.

4. Smart Monitoring and Maintenance: Integration of IoT and AI for real-time monitoring of membrane performance, predictive maintenance, and automated cleaning cycles to enhance operational efficiency and lifespan.

5. Energy-Efficient Systems: Development of low-energy consumption membranes, focusing on reducing operational costs and making the systems more economically viable.

Challenges and Future Prospects

While ceramic membrane filtration systems hold significant promise, challenges remain:

• Cost Reduction: Innovations are needed to reduce the initial investment required for ceramic membranes.
• Biofouling: Although ceramic membranes are resistant to chemical fouling, biological fouling remains a challenge, requiring more effective cleaning solutions.
• Adaptability: Developing membranes that can handle a wider variety of feed streams without degradation in performance.

The ongoing research and technological advancements indicate a promising future for ceramic membrane filtration systems. As industries and municipalities increasingly prioritize sustainable and efficient water and wastewater treatment solutions, the adoption of ceramic membranes is expected to rise.

Conclusion

Ceramic membrane filtration systems present a highly effective, durable, and versatile solution for the separation and purification of liquids across various industries. Despite their higher initial cost and brittleness, their numerous advantages—including chemical resistance, thermal stability, and long-term operational efficiency—make them an attractive option. As research progresses and technology advances, ceramic membranes are poised to become even more integral to water and wastewater treatment processes worldwide, contributing to safer water supplies and more sustainable industrial operations.

Emerging trends in hybrid membrane technology, smart monitoring, and sustainable manufacturing processes suggest that the field will continue to evolve, addressing current limitations and unlocking new applications. For industries and municipalities seeking reliable and efficient filtration solutions, ceramic membrane filtration systems warrant serious consideration.
