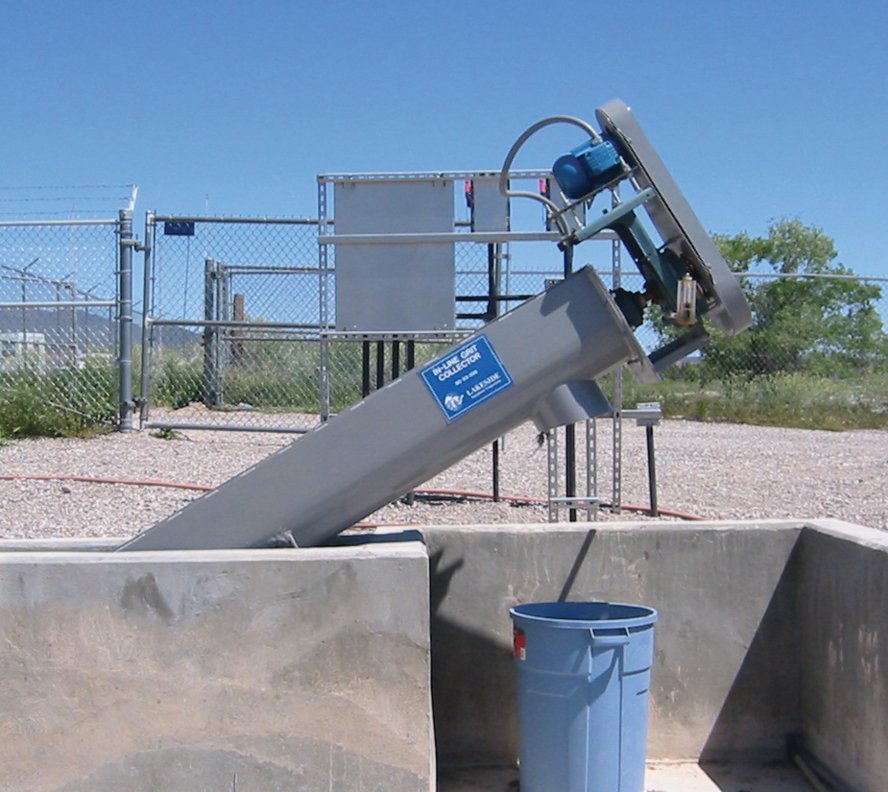

Gravity Grit Chambers for Wastewater: Efficient Sediment Removal Solutions
Wastewater treatment is a crucial component of modern infrastructure, ensuring that water is cleaned and reused efficiently. Among the different technologies employed, gravity grit chambers play a vital role. They are designed to separate solid particles like sand and gravel from wastewater by using gravity to settle out the heavier particles. This process is essential for protecting downstream equipment and maintaining overall treatment efficiency.
Grit removal is a necessary pretreatment step in wastewater management. In gravity grit chambers, the flow of water slows down, allowing grit particles to settle to the bottom while the cleaner water continues through the system. Different types of grit chambers, such as vortex or aerated designs, may be used depending on specific needs and conditions. Each type has its advantages in terms of efficiency and cost-effectiveness.
When selecting or designing a grit chamber, operational considerations include factors like the expected volume of incoming wastewater and the nature of the suspended particles. It’s important to ensure that these systems are properly maintained to avoid issues that might arise from neglect. By optimizing the design and operation of grit chambers, wastewater facilities can significantly reduce maintenance costs and improve the longevity of their overall systems.
Key Takeaways
- Gravity grit chambers use gravity to remove solids from wastewater.
- Different designs of grit chambers suit various treatment needs.
- Proper maintenance is vital for the efficiency of grit chambers.
Fundamentals of Grit Chambers
Grit chambers play a crucial role in wastewater treatment by removing sand, silt, and other inorganic materials before they enter the treatment plant. These chambers ensure efficient plant operation and prevent damage to equipment.
Grit Chamber Functions
A grit chamber is vital for the initial stage of wastewater treatment. Its primary function is to remove heavy inorganic materials, such as sand and gravel, which can be abrasive. By doing this, the grit chamber protects pumps and reduces wear on facility equipment.
These chambers typically include a flow system that encourages heavier particles to settle. This helps maintain the efficiency of subsequent treatment processes. Effective grit removal relies on the correct sizing and design of the chamber, allowing for optimal particle settling and transportation.
Detention Time Considerations
Detention time in a grit chamber is a key factor affecting its performance. It is the period during which wastewater stays in the chamber, allowing grit to settle out of the flow. Typically, a detention time of 1 to 3 minutes is optimal.
Proper detention time ensures maximal removal of inorganic particles while minimizing the settling of organic materials. If the time is too short, grit may pass through without settling; too long, and organic matter may start to settle, creating unpleasant odors. Achieving balanced detention time helps in maintaining the effectiveness of the grit chamber.
Design and Types of Grit Chambers
Grit chambers are an essential component of wastewater treatment, designed to remove sand, gravel, and other heavy particles. Different designs, such as horizontal flow and aerated grit chambers, offer unique benefits to improve overall efficiency.
Horizontal Flow Grit Chambers
Horizontal flow grit chambers are designed to allow wastewater to flow in a horizontal direction through a long tank. This design maintains a controlled velocity of about 1 foot per second. Doing this helps ensure that heavier particles settle out while lighter organic solids remain in suspension.
The construction is fairly straightforward. These chambers rely on gravity to separate grit, making them energy-efficient. One disadvantage is their size; they require significant space, making them less ideal for urban areas. Despite the space requirement, they offer simple operation and maintenance.
Aerated Grit Chambers
Aerated grit chambers use air to help separate grit from organic matter. Air is bubbled through the tank, creating a spiral flow that keeps organic particles suspended while allowing grit to settle at the bottom.
This design is beneficial for its ability to handle variable flow rates and its efficiency in separating fine particles. It also has the added benefit of some odor control and limited scum removal. The mechanical components required for aeration can lead to higher operational costs and maintenance needs.
Comparing Grit Chamber Types
When comparing horizontal flow and aerated grit chambers, several factors are considered. Space and Cost: Horizontal flow chambers need more space but are generally less expensive to operate. Aerated chambers require less space due to their compact design but can be more costly over time.
Efficiency: Aerated chambers often show better efficiency in separating finer particles and handling variable flow rates. This efficiency makes them more suitable for complex systems.
In terms of maintenance, horizontal chambers are usually simpler but the ongoing cost and upkeep of aerated systems are higher because of mechanical parts. Both types play crucial roles in enhancing the performance of wastewater treatment facilities.
Grit Chambers in Wastewater Treatment
Grit chambers play a crucial role in removing inorganic materials like sand, gravel, and other heavy particles from wastewater. These components are essential for maintaining the efficiency of the treatment process and protecting downstream equipment.
Role in Wastewater Treatment Plants
In a wastewater treatment plant, grit chambers are designed to separate grit materials from the wastewater before further treatment. They slow down the flow, allowing heavier particles like sand and gravel to settle at the bottom. This process helps prevent damage and abrasion to pipes, pumps, and other equipment in the plant.
By removing these coarse materials early in the process, grit chambers reduce wear and tear on mechanical components. This extends the lifespan of treatment plant equipment and increases operational efficiency. Without grit chambers, the accumulation of such materials could lead to blockages and increased maintenance costs.
Grit Chambers in Sewage Treatment Context
In sewage treatment plants, grit chambers often precede screening processes. These chambers capture not just sand and gravel, but also other undesirable materials like eggshells and small stones. This makes the downstream biological treatments more efficient by reducing the amount of inorganic material they must handle.
The design of a grit chamber in a sewage context is crucial. It must be large enough to accommodate variations in flow, especially during storm events when the amount of grit can increase significantly. Usually, the grit chamber is a rectangular or circular basin, allowing for the even distribution and settling of grit particles.
The efficiency of grit removal is important for overall sewage treatment. Effective grit chambers ensure cleaner and more manageable wastewater ahead in the treatment process, maintaining smoother operations and better results.
Pretreatment and Grit Removal
Before wastewater reaches a gravity grit chamber, it undergoes pretreatment to remove larger debris and solids. This process ensures the efficient operation of grit chambers and helps in the protection of downstream equipment.
Screening Processes before Grit Chambers
Screening is an essential step that removes large objects from wastewater, such as leaves, plastics, and rags. These screens act as the first line of defense, protecting the system from blockages and damage. By capturing these items early on, the treatment process becomes more efficient. Screens vary in size and design, with coarse screens targeting larger debris and fine screens focusing on smaller particles.
The effectiveness of screening influences how well the subsequent grit removal processes perform. Properly maintained screens reduce clogging and prolong the lifespan of mechanical parts. This is significant in systems with a high volume of waste material. Regular cleaning and inspection of screens are necessary to ensure optimal function. This keeps the overall system running smoothly.
Integration of Bar Screens
Bar screens are commonly used in conjunction with grit chambers. These screens consist of parallel bars placed at an angle to intercept large solids in the flow. Positioned ahead of the grit chamber, bar screens play a critical role in protecting sensitive equipment from damage caused by oversized debris. The spacing of the bars allows water and smaller grit to pass through while blocking larger objects.
Bar screens are known for their durability and efficiency in waste retention. They are typically automated, using rakes or combs to clean and prevent blockages. The integration of bar screens with grit chambers enhances the removal of sand, gravel, and other heavy particles. Operators must regularly monitor and maintain these screens to ensure continuous operation and prevent costly repairs. These efforts improve the effectiveness of the entire system in dealing with grit and other materials.
Operational Considerations
Operating gravity grit chambers for wastewater treatment involves regular tasks to ensure efficiency and address potential issues promptly. Understanding daily operations and the ability to troubleshoot common problems are essential for maintaining the system’s effectiveness.
Daily Operations and Maintenance
Daily operations require monitoring and adjusting flow rates to ensure optimal performance. The key function of a grit chamber is to remove grit and other heavy solids from wastewater, preventing damage to downstream equipment. Operators should check for even distribution of flow and remove accumulated grit regularly.
Routine checks include inspecting screens and rakes for debris. Lubricating moving parts can prolong equipment life. It’s crucial to measure the velocity of wastewater entering the chamber, typically around 1 foot per second, to prevent unwanted sedimentation or scouring of organic solids.
Troubleshooting Common Issues
Common issues like uneven flow distribution, clogging, or excessive wear on parts need prompt attention. If grit is not settling properly, it might indicate improper flow rates or chamber design flaws. Operators should inspect for blockages and adjust flow rates.
Uneven velocities can lead to incomplete grit removal or damage to equipment. Calibration and maintenance of control systems help in adjusting flows to minimize these problems. Regular inspections and using proper materials for clogs prevent such operational hiccups.
Frequently Asked Questions
What is the purpose of a grit chamber in wastewater treatment?
Grit chambers are used to remove heavy particles from wastewater. These particles could include sand, gravel, and other large debris. Removing grit is important as it can cause wear and tear on pumps and other machinery.
How does a gravity grit chamber function in wastewater treatment plants?
Gravity grit chambers rely on gravity to separate grit from the water. As water flows through the chamber, heavier particles settle at the bottom while lighter organic materials continue through the system. This simple method is efficient for initial treatment steps.
What are the advantages of utilizing gravity grit chambers in wastewater treatment?
Gravity grit chambers require little energy, making them cost-effective. They can handle large volumes of water and have low maintenance needs. Their simple operation also reduces the chance of mechanical failures.
What factors influence the efficiency of grit removal in wastewater treatment?
Efficiency can be influenced by the flow rate of water, particle size, and chamber design. Optimal flow ensures sufficient time for grit to settle. Smaller particles might require different adjustments in the system for effective removal.
How is a gravity grit chamber designed for optimal performance?
Design involves the right slope and length to balance flow speed and settling time. The size must accommodate expected water volume and particle load. Regular maintenance ensures the system continues to perform at its best.
What are the cost considerations when installing gravity grit chambers for wastewater treatment?
Cost factors include initial construction, land use, and regular maintenance. Though they are cost-effective in the long run, initial investment might be significant. It's important to plan for potential expansions as capacity needs grow.
