Gravity Thickening: Efficient Sludge Concentration in Wastewater Treatment
Gravity thickening is a crucial process in wastewater treatment. It helps reduce the volume of sludge by removing excess water. This method relies on gravity to separate solids from liquids, making it a simple yet effective technique.
Gravity thickeners can concentrate sludge to 8-10% total solids, significantly reducing the volume that needs further processing. This step is often used on primary sludge in treatment plants. The thickened sludge is then pumped to anaerobic digesters for further treatment.

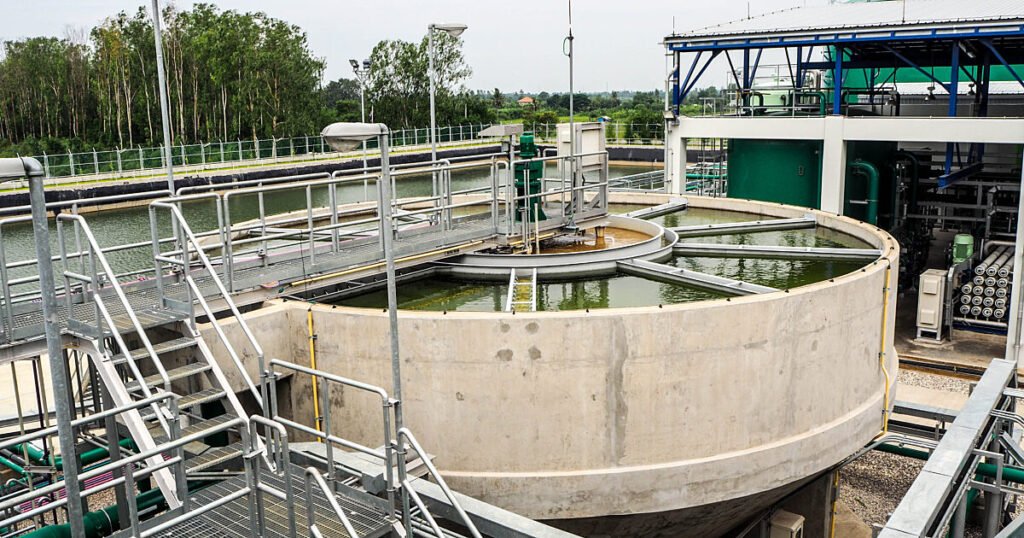

The process takes place in large circular tanks. Sludge enters the tank and settles to the bottom. Clear water rises to the top and is removed. Rotating arms slowly move across the tank bottom, pushing the thickened sludge to a central collection point.
Key Takeaways
- Gravity thickening reduces sludge volume by removing water from wastewater solids
- The process uses simple gravitational forces to separate solids from liquids
- Proper design and maintenance of gravity thickeners are essential for efficient wastewater treatment
Fundamentals of Gravity Thickening
Gravity thickening is a key process in wastewater treatment and sludge management. It relies on the natural force of gravity to separate solids from liquids, increasing the concentration of solid particles.
Defining Gravity Thickening
Gravity thickening is a method used to reduce the volume of sludge by removing excess water. It works by allowing solid particles to settle to the bottom of a tank or container under the influence of gravity.
The process creates two distinct layers:
- A thickened sludge layer at the bottom
- A clear water layer on top
This separation happens without the need for additional chemicals or mechanical devices. Gravity thickeners come in different shapes, including circular and rectangular designs.
Principles of Operation
Gravity belt thickeners work on a simple yet effective principle. They use a slow-moving belt to carry the sludge. As the belt moves, water drains through small openings in the belt fabric.
Key components of a gravity belt thickener include:
- A porous belt
- Rollers to move the belt
- A feed system to distribute sludge evenly
- A drainage system to collect water
The belt’s speed and angle can be adjusted to optimize thickening. Gravity pulls water through the belt while solids remain on top. This process increases the solid content of the sludge, making it easier to handle and process further.
Gravity Belt Thickener Design
Gravity belt thickeners use a porous belt to remove water from sludge. They have specific parts and offer advantages over other dewatering methods. Let’s explore the key components and compare them to belt filter presses.
Components and Parts
The main parts of a gravity belt thickener include:
- Feed system
- Polymer conditioning unit
- Gravity drainage zone
- Porous belt
- Belt drive and tensioning system
- Filtrate collection system
The feed system spreads sludge evenly on the moving belt. A polymer unit adds chemicals to help separate water from solids. The gravity zone is where most dewatering happens.
The porous belt is crucial. It allows water to drain while keeping solids on top. Belt speed can be adjusted from 2-10 feet per minute.
Proper belt tensioning is key for good performance. The filtrate system collects and removes the separated water.
Gravity Belt vs Belt Filter Press
Gravity belt thickeners focus on initial dewatering. Belt filter presses do more intense dewatering later in the process.
Key differences:
- Pressure: Gravity belts use only gravity. Filter presses add mechanical pressure.
- Solids content: Gravity belts achieve 5-8% solids. Filter presses can reach 15-30%.
- Footprint: Gravity belts are usually smaller and simpler.
- Energy use: Gravity belts use less power than filter presses.
Gravity belts work well for primary sludge thickening. They’re often used before digesters or other treatment steps. Filter presses are better for final dewatering before disposal.
Ponding can be an issue with gravity belts. This happens when water doesn’t drain fast enough through the belt.
Gravity Belt Thickener in Wastewater Treatment
Gravity belt thickeners play a key role in wastewater treatment by concentrating sludge. They increase solids content efficiently, reducing sludge volume for easier handling and disposal.
Process Integration
Gravity belt thickeners are often used early in the sludge treatment process. They take in thin sludge and produce a thicker output. The incoming sludge typically has 0.3-0.6% total solids. After thickening, it reaches 4-6% total solids.
This thickened sludge is much easier to handle. It takes up less space and costs less to transport. The process helps streamline later treatment steps like digestion and dewatering.
Gravity belt thickeners work well with different types of sludge. They can handle primary, secondary, and mixed sludges from various treatment plants.
Operational Considerations
Proper operation is crucial for gravity belt thickener success. Key factors include:
- Belt speed
- Polymer dosage
- Sludge feed rate
- Wash water pressure
Operators must balance these factors for optimal performance. Too high a feed rate can overload the belt. Too little polymer can lead to poor flocculation.
Regular maintenance keeps the system running smoothly. This includes cleaning the belt and checking for wear. Proper upkeep extends equipment life and maintains efficiency.
Gravity belt thickeners offer benefits like reduced construction costs and easy operation. However, they do require ongoing attention to polymer use and belt condition.
Manufacturers and Market Trends
Several companies make gravity belt thickeners for wastewater treatment plants. Key manufacturers include Alfa Laval, Andritz, and Huber Technology.
These firms offer various models to fit different plant sizes and sludge types. Many focus on improving energy efficiency and reducing operating costs for utilities.
The market for gravity thickeners is growing steadily. This is due to stricter environmental rules and the need to upgrade aging infrastructure.
New trends include:
• Automated controls for optimal performance • Corrosion-resistant materials like stainless steel • Designs that use less water and power
Some manufacturers now offer rental and leasing options. This helps utilities test equipment before buying.
Gravity belt thickeners remain popular because they work well and cost less than other methods. However, they face competition from newer technologies like rotary drum thickeners.
The global water and wastewater treatment market is expected to keep expanding. This should drive demand for gravity thickeners and similar equipment in coming years.
Operational Best Practices and Troubleshooting
Proper operation and maintenance are key to getting the best results from gravity thickeners. Operators need to monitor performance closely and address issues quickly.
Achieving Optimal Performance
Gravity thickeners work best when inflow rates and solids concentrations are kept steady. Operators should adjust feed rates carefully to avoid overloading. Regular testing of influent and effluent samples helps track performance.
Proper chemical dosing is crucial. Polymer addition improves solids capture, but overdosing wastes money and can harm downstream processes. Jar testing determines the right dose.
Skimmer arms need regular inspection and adjustment. Bent or damaged arms won’t remove scum effectively. Operators should check arm clearance weekly and realign as needed.
Gravity belt thickeners require special attention to belt tracking and tension. Uneven belts reduce efficiency and increase wear. Daily visual checks and periodic tensioning keep belts running smoothly.
Common Operational Challenges
Foaming often plagues gravity thickeners. It can overflow basins and create messy conditions. Adding defoamers helps, but finding the root cause is better. Common culprits include excessive aeration and certain wastewater components.
Odors may develop, especially in warmer weather. Good housekeeping and regular flushing of problem areas can help. For persistent odors, chemical treatment or covering the thickener may be necessary.
Sludge blankets that are too deep reduce efficiency and risk solids carryover. Operators must balance sludge removal rates to maintain the right blanket depth. Blanket detectors aid in monitoring and control.
Equipment failures like broken rakes or drive units need quick response. Keeping spare parts on hand and following maintenance schedules helps minimize downtime. Regular lubrication and inspection catch problems early.
Frequently Asked Questions
What are the essential components of a gravity thickener system in wastewater treatment?
A gravity thickener system consists of several key parts. The main tank holds the sludge and allows solids to settle. A rake mechanism slowly moves settled solids to a central collection point.
Scum collectors remove floating materials from the surface. Pumps transfer thickened sludge out of the system. Overflow weirs collect clarified water for further treatment or recycling.
How do you calculate the design parameters for a gravity thickener?
Design parameters for gravity thickeners depend on several factors. Engineers consider the expected sludge flow rate and solids concentration. They also account for the desired thickened sludge concentration.
The surface area of the thickener is calculated based on the solids loading rate. Tank depth is determined by retention time requirements. Overflow rates help size the weirs and effluent channels.
What are the different methods of gravity thickening and how do they compare?
Conventional gravity thickening relies on natural settling. It works well for primary sludge but less so for lighter biological solids. Picket fence thickeners use slow-moving rakes to enhance compaction.
Gravity belt thickeners use a moving belt to separate water from solids. They can achieve higher solids concentrations than conventional methods. Dissolved air flotation thickeners work by floating solids to the surface for removal.
What factors influence the cost of gravity thickening in wastewater treatment facilities?
Equipment size and complexity impact initial costs. Larger tanks and more sophisticated rake mechanisms increase expenses. Energy consumption for pumps and drives affects operating costs.
Chemical usage for enhanced settling can be a significant expense. Maintenance requirements, including equipment repair and replacement, contribute to long-term costs. Labor needs for system operation and monitoring also factor into overall expenses.
In what ways does the principle of a gravity belt thickener differ from an ordinary gravity thickener?
Gravity belt thickeners use a moving porous belt instead of a stationary tank. Sludge is applied to the belt, and water drains through by gravity. This allows for continuous operation rather than batch processing.
Belt thickeners can achieve higher solids concentrations in less space. They often require polymer addition to enhance dewatering. Ordinary gravity thickeners rely solely on settling and don't use a moving filtration medium.
How is the loading rate for a gravity thickener determined in wastewater treatment applications?
The loading rate depends on sludge characteristics. Primary sludge typically allows higher loading rates than secondary sludge. Engineers consider the desired thickened sludge concentration when setting the rate.
Pilot testing often helps determine optimal loading rates. Historical data from similar facilities can provide guidance. Seasonal variations in sludge properties may require adjustable loading rates throughout the year.
