Non Clog Centrifugal Pump: Essential for Efficient Wastewater Management

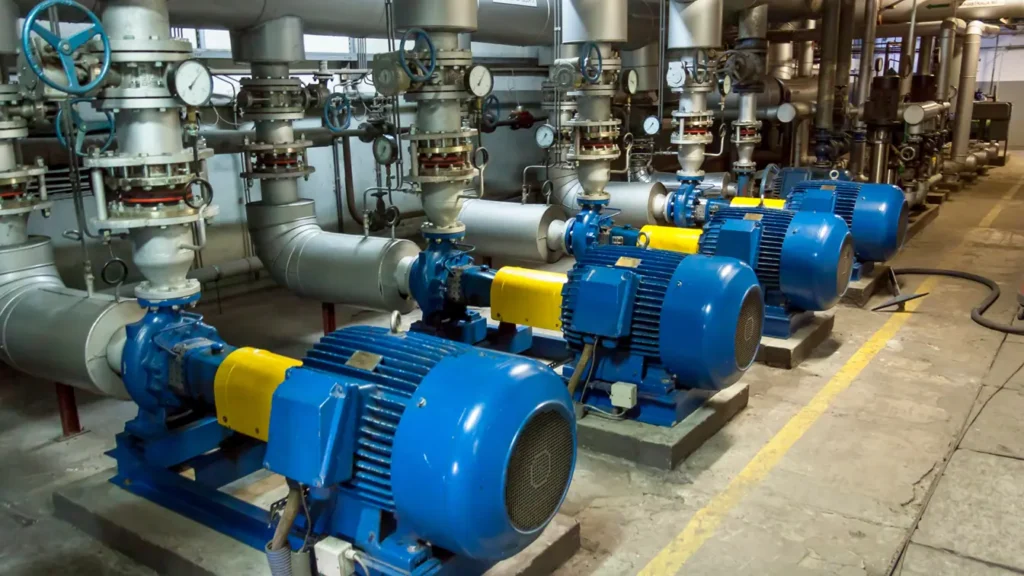

Non-clog centrifugal pumps are powerful tools in the world of fluid handling. These pumps are designed to move liquids containing solids without getting clogged. They work by using centrifugal force to push the fluid and any solid particles through the pump.

Non-clog centrifugal pumps are built with special features that allow them to handle tough jobs in various industries. Their impellers are shaped to let large objects pass through without getting stuck. This makes them great for use in wastewater treatment plants, food processing, and other places where regular pumps might fail.

These pumps come in different sizes and types to fit different needs. Some are made to handle very thick fluids, while others are better for moving large amounts of water with some solids. Proper design of supply vessels and suction-piping systems can help these pumps work even better and avoid problems like wear and tear.

Key Takeaways

• Non-clog centrifugal pumps are designed to move fluids with solids without clogging
• These pumps are used in many industries including wastewater treatment and food processing
• Proper selection and setup of non-clog pumps is key for optimal performance and longevity

Fundamentals of Non Clog Centrifugal Pumps

Non clog centrifugal pumps are designed to handle liquids containing solids and debris without clogging. These pumps use centrifugal force to move fluids while preventing solid materials from obstructing the impeller or pump casing.

Definition and Overview

Non clog centrifugal pumps are specialized pumps built to handle fluids with solid particles, fibers, and other materials that might clog standard pumps. They are commonly used in wastewater treatment, industrial processes, and sewage systems.

Read moreMagnetic Ion Exchange Wastewater

These pumps have unique design features that allow them to pass solids without getting blocked. The impeller and casing are engineered to minimize the risk of clogging, even when dealing with challenging fluids.

Non clog pumps can handle a wide range of particle sizes, from small suspended solids to larger objects. This versatility makes them essential in applications where regular pumps would fail.

Components and Mechanism

The key components of a non clog centrifugal pump include:

• Impeller: Specially designed with wide passages to prevent clogging
• Casing: Shaped to guide solids through the pump without obstruction
• Shaft: Connects the impeller to the motor
• Bearings: Support the rotating shaft
• Seals: Prevent leakage around the shaft

The pump operates by creating centrifugal force as the impeller rotates. This force pushes the fluid and solids outward, then directs them through the pump casing and out the discharge.

The impeller design is crucial. It often features large openings or vanes that allow solids to pass through easily. Some models use a single-vane or vortex design to minimize contact with solids.

Types of Non Clog Centrifugal Pumps

Read moreWastewater Treatment in Food Industry: Advancing Sustainable Processing Solutions

Non clog centrifugal pumps come in various configurations to suit different applications:

1. Horizontal non-clog centrifugal pumps: These pumps have a horizontal shaft orientation. They are easy to access for maintenance and are often used in municipal wastewater systems.
2. Vertical non-clog centrifugal pumps: These pumps have a vertical shaft. They’re ideal for deep well installations or where floor space is limited.
3. Submersible non-clog pumps: Designed to operate while fully submerged in the pumped fluid. They’re common in sewage lift stations.
4. Self-priming non-clog pumps: These pumps can remove air from the suction line, allowing them to start pumping without manual priming.

Each type has its advantages and is chosen based on the specific requirements of the application, such as fluid characteristics, installation space, and maintenance needs.

Design Considerations for Non Clog Pumps

Non clog centrifugal pumps require careful design to handle solids without clogging. Key aspects include impeller shape, casing structure, and seal protection.

Impeller Features

Non clog pump impellers have special shapes to pass solids. They often use large open designs with wide passages between vanes.

Some common impeller types:

• Single-vane: One curved blade for maximum solids handling
• Two-vane: Balanced design with two curved blades
• Multi-vane: 3-4 short blades for higher efficiency

Read moreThermal Hydrolysis in Wastewater Treatment: Enhancing Sludge Management Efficiency

Edges are usually rounded to avoid catching debris. The impeller may have a “trash-hacking” feature to cut up stringy materials.

Impeller clearances are larger than standard pumps. This allows solids to pass without jamming between the impeller and casing.

Pump Casing

The casing design is crucial for non clog performance. It needs smooth contours and large openings.

Key casing features:

• Wide volute with gradual expansion
• Large discharge nozzle
• Removable cover plate for easy cleaning

Casings often allow for easy access to remove clogs if they occur. Some designs use a “back pull-out” feature to remove the entire rotating assembly.

Internal surfaces are smooth to prevent build-up. Wear plates may be used in high-abrasion applications.

Seal Design

Seals in non clog pumps need extra protection from abrasive solids. Several approaches are used:

• Double mechanical seals with a clean flush
• Cartridge seals for easy replacement
• Hard-face materials like silicon carbide

Some pumps use external seal chambers to keep solids away from the seal faces. Flush plans may inject clean water to create a barrier.

Lip seals or stuffing boxes are sometimes used for less demanding applications. These are simpler but require more maintenance.

Seal housings often have large clearances to allow solids to pass without damaging the seal.

Applications of Non Clog Pumps

Non clog centrifugal pumps are vital in handling fluids with solid particles and debris. These pumps excel in moving thick liquids and slurries without clogging or damage.

Wastewater Management

Non clog pumps play a key role in wastewater treatment plants. They move raw sewage and sludge through various stages of processing. Horizontal non-clog centrifugal pumps are often used in lift stations to transport wastewater to treatment facilities.

These pumps can handle solids up to 3 inches in size. This ability makes them ideal for unscreened sewage with rags, wipes, and other debris. Vertical non-clog centrifugal pumps are common in wet wells and sumps.

The pumps’ design prevents clogging from hair, fibers, and small plastic items. This reduces maintenance needs and keeps systems running smoothly. Non clog pumps also move treated effluent and recycled water in later treatment stages.

Flood Control

Non clog centrifugal pumps are crucial for flood prevention and control. They remove large volumes of water quickly during heavy rains or floods. These pumps can handle water with sand, silt, and debris without getting blocked.

Vertical non-clog centrifugal pumps are often used in stormwater pumping stations. They can be partially submerged and still function effectively. Horizontal pumps are used in flood control systems for rivers and coastal areas.

The pumps’ ability to handle solids is vital during floods. They can move water filled with leaves, branches, and other storm debris. This helps prevent flooding in urban areas and protects critical infrastructure.

Industrial Processing

Non clog pumps are widely used in various industries for processing thick liquids and slurries. In the paper and pulp industry, they move wood pulp and paper stock. These pumps handle the fiber-rich slurry without clogging.

In food processing, non clog pumps move products like tomato paste, fruit purees, and vegetable mixes. They can handle seeds, skins, and pulp without damage. The mining industry uses these pumps to transport ore slurries and tailings.

Horizontal non-clog centrifugal pumps are common in chemical processing. They move thick chemicals and polymer solutions. Vertical pumps are used in sumps and tanks to handle industrial waste and byproducts.

Installation and Maintenance

Proper installation and regular maintenance are crucial for the optimal performance and longevity of non clog centrifugal pumps. Following guidelines and addressing issues promptly can prevent costly downtime and repairs.

Installation Guidelines

Non clog centrifugal pumps require careful installation to function correctly. Place the pump on a level, sturdy foundation to minimize vibration. Ensure proper alignment of the pump and motor shafts to prevent premature wear.

Connect suction and discharge piping with minimal stress on pump flanges. Use flexible couplings to absorb vibration and thermal expansion. Install valves on both suction and discharge sides for easier maintenance.

Proper priming is essential. Fill the pump casing and suction line with liquid before starting. Install a check valve on the discharge side to maintain prime.

Electrical connections must comply with local codes. Use the correct wire size and ensure proper grounding. Install thermal overload protection to safeguard the motor.

Routine Maintenance

Regular maintenance extends pump life and maintains efficiency. Create a schedule for routine checks and stick to it.

Daily tasks:

• Check for unusual noises or vibrations
• Monitor operating temperatures
• Inspect for leaks

Weekly tasks:

• Lubricate bearings (if not sealed)
• Clean external surfaces

Monthly tasks:

• Check alignment
• Tighten loose bolts
• Inspect mechanical seals

Maintain proper records of all maintenance activities. This helps identify patterns and predict potential issues before they become serious problems.

Troubleshooting Common Issues

Non clog centrifugal pumps may encounter various problems. Quick identification and resolution are key to minimizing downtime.

Low flow rate:

• Check for clogged impeller
• Inspect suction line for blockages
• Verify valve positions

Excessive noise or vibration:

• Check for cavitation
• Inspect for worn bearings
• Ensure proper alignment

Overheating:

• Check for insufficient liquid
• Inspect for closed discharge valve
• Verify proper motor cooling

If problems persist, consult the manufacturer’s manual or seek professional help. Regular training for operators can improve problem-solving skills and reduce downtime.

Performance Optimization

Non clog centrifugal pumps can be optimized to work more efficiently and handle difficult fluids. Proper adjustments and upgrades can boost pump performance and extend its working life.

Maximizing Efficiency

To maximize efficiency, start by checking the pump performance curve. This shows how the pump operates at different flow rates. Adjust the impeller size to match system requirements. A correctly sized impeller reduces energy waste.

Regular maintenance is key. Clean the impeller and casing to remove buildup. This keeps the pump running smoothly. Lubricate bearings as needed. Check and replace seals to prevent leaks.

Monitor the pump’s suction conditions. Maintain proper Net Positive Suction Head (NPSH) to avoid cavitation. Use a variable frequency drive to match pump speed to system demand. This can save energy during periods of low flow.

Upgrades and Modifications

Upgrading impeller design can greatly improve pump performance. New impeller shapes can handle solids better and reduce clogging. Coatings on pump parts can increase wear resistance and efficiency.

Adding a cutter or grinder mechanism helps break down large solids. This prevents blockages in the pump. Installing a backflush system can clear clogs automatically.

Advanced control systems optimize pump operation. They adjust speed based on flow and pressure needs. Smart sensors can detect issues early, preventing costly breakdowns.

For tough applications, consider hardened materials for pump parts. These stand up better to abrasive fluids. Upgrading the motor to a more efficient model can reduce energy use and operating costs.

Regulatory Standards and Safety

Non-clog centrifugal pumps must meet strict standards for quality, compliance, and operational safety. These regulations ensure reliable performance and protect workers and the environment.

Quality and Compliance

Non-clog centrifugal pumps are subject to various industry standards. The Hydraulic Institute sets key guidelines for pump design and testing in North America.

ISO 9001 certification is often required for pump manufacturers. This standard ensures consistent quality control processes.

Pumps used in hazardous areas must comply with ATEX directives in Europe or NEC codes in the US. These rules prevent sparks or excessive heat that could cause explosions.

Many industries have specific regulations. For example, pumps in food processing must meet FDA sanitary standards. Those in wastewater treatment follow EPA guidelines.

Operational Safety

Proper safety measures are crucial when operating non-clog centrifugal pumps. Regular maintenance checks help prevent cavitation damage and ensure optimal performance.

Operators should wear personal protective equipment (PPE) when working with pumps. This includes safety glasses, gloves, and steel-toed boots.

Lockout/tagout procedures are essential during pump maintenance. These steps prevent accidental startup and protect workers from injuries.

Proper installation of guards and safety devices is required. These protect workers from rotating parts and hot surfaces.

Emergency shutdown protocols should be in place and clearly communicated to all operators.

Comparison and Selection

Non-clog centrifugal pumps come in different types and configurations. Selecting the right pump requires careful consideration of various factors and performance characteristics.

Comparing Different Types

Horizontal and vertical non-clog centrifugal pumps have distinct advantages. Horizontal pumps are easier to access for maintenance and take up less vertical space. Vertical pumps have a smaller footprint and can handle deeper pump pits.

Horizontal non-clog pumps often have higher efficiency and can handle larger flow rates. They’re well-suited for wastewater treatment plants and industrial applications.

Vertical non-clog pumps excel in applications with limited floor space or deep sumps. They’re common in lift stations and stormwater management systems.

Some key differences to consider:

• Installation requirements
• Maintenance accessibility
• Priming needs
• Motor placement
• Impeller designs

Selection Criteria

Choosing the right non-clog centrifugal pump involves evaluating several factors:

1. Flow rate and head requirements
2. Solids handling capability
3. Efficiency and energy consumption
4. Installation space constraints
5. Maintenance needs and accessibility

The pump curve is a crucial tool for selection. It shows the relationship between flow rate, head, and efficiency.

Other important considerations include:

• Fluid characteristics (viscosity, temperature, solids content)
• Materials of construction for corrosion resistance
• Motor type and power requirements
• Control system compatibility

Proper sizing is critical. An oversized pump wastes energy, while an undersized one may not meet system demands.

Advancements and Future Trends

New technologies are improving non clog centrifugal pumps. The market for these pumps is also changing.

Technological Innovations

Non clog centrifugal pumps are getting smarter. Many now have sensors to check how well they work. These sensors can spot problems early. This helps stop breakdowns before they happen.

Internet of Things (IoT) systems are being used more. They let pump owners watch how pumps work from far away. This makes it easier to keep pumps running well.

Some pumps now use special coatings. These coatings help pumps last longer. They also make pumps use less power.

3D printing is changing how pumps are made. It lets makers create pump parts with complex shapes. These new shapes can make pumps work better.

Market Developments

More people want non clog centrifugal pumps. This is because cities are growing bigger. These pumps help move waste water in big cities.

Pump makers are focusing on saving energy. They want their pumps to use less power. This is good for the environment and saves money.

There’s a push for pumps that need less care. Buyers want pumps that don’t break down often. This saves time and money on fixes.

Some companies are making pumps for specific jobs. For example, pumps just for thick liquids or pumps for very dirty water. This helps pumps work better for each task.

Case Studies and Real-World Examples

Non-clog centrifugal pumps have proven their worth in various industries. Their ability to handle solids and debris makes them ideal for challenging applications.

In a wastewater treatment plant, a non-clog pump successfully managed raw sewage containing rags and other solids. The pump operated continuously for 18 months without clogging, reducing maintenance costs and downtime.

A food processing facility used a non-clog pump to move vegetable waste. The pump handled fibrous materials and small chunks without issues, improving production efficiency.

Mining Industry Application:

• Pumped slurry with abrasive particles
• Reduced wear on pump components
• Extended equipment lifespan by 30%

A paper mill installed non-clog pumps to handle pulp with long fibers. This resulted in fewer clogs and smoother operations compared to their previous pumps.

In a municipal flood control system, non-clog pumps effectively moved stormwater containing leaves, twigs, and small debris. This helped prevent flooding during heavy rainfall events.

These real-world examples show how non-clog centrifugal pumps can handle various challenging materials across different industries. Their robust design and ability to pass solids make them valuable assets in many applications.
