Settling Tank in Wastewater: Essential for Efficient Treatment

In the world of wastewater treatment, settling tanks play a crucial role. These structures are designed to remove solids from wastewater, allowing for cleaner effluent to be released back into the environment. This process is essential for maintaining water quality and protecting ecosystems. Settling tanks use gravity to separate solid particles from liquid, making them a vital component of the wastewater treatment process.

There are different types of settling tanks, each with unique characteristics that make them suitable for various needs. Their design can vary based on the requirements of the treatment plant and the specific characteristics of the wastewater being treated. Understanding these design aspects helps in optimizing their performance and ensuring efficiency in the removal of impurities.

Read moreWhat Is Tss In Wastewater Treatment

Modern settling tanks must meet strict regulations and standards. With the need for efficient treatment processes, settling tanks are continuously being improved to handle greater volumes of wastewater while maintaining high levels of cleanliness. Proper maintenance and regular cleaning are key to ensuring that these tanks operate effectively over time.

Key Takeaways

• Settling tanks are crucial for removing solids from wastewater.
• Different types and designs cater to specific treatment needs.
• Regular maintenance ensures lasting efficiency of settling tanks.

Basics of Settling Tanks in Wastewater Treatment

Settling tanks play a crucial role in wastewater treatment by removing solids through sedimentation. These tanks come in various shapes and sizes, tailored for different types of wastewater and specific treatment needs.

Purpose of Settling Tanks

Settling tanks, also known as clarifiers or sedimentation basins, are designed to remove suspended particles from water. By slowing down the water flow, they allow heavier particles to sink to the bottom. This process not only clears water but also prevents pipes from clogging and reduces the load on future treatment stages. In wastewater facilities, the design of these tanks is critical to ensuring efficient solid separation.

Read moreOrange County Sanitation District Wastewater Treatment Plant No. 2

Effective settling tanks improve the quality of treated water by minimizing the amount of suspended solids. They are typically situated outdoors and have large surface areas exposed to air, facilitating natural sedimentation processes. These tanks are an essential component in both water and wastewater treatment plants.

Types of Settling Tanks

Various types of settling tanks are employed depending on specific uses and design requirements. Common types include rectangular and cylindrical tanks. Rectangular basins are often used due to their simple design, while cylindrical tanks are preferred for their more efficient hydraulic flow. Other types include circular settling tanks, which perform well in large wastewater facilities.

Read moreSand Filtration in Water: A Comprehensive Guide to Clean Drinking Solutions

Each design has its own advantages and applications, and the choice depends on factors like the volume of water to be treated and the characteristics of the suspended particles. Engineers must consider these aspects to select the most effective type of tank for specific treatment processes. Understanding these differences helps optimize treatment and meet regulatory standards.

Design Aspects of Settling Tanks

Settling tanks play a crucial role in wastewater treatment by allowing solids to settle out of the water. This section explores the design elements essential for both circular and rectangular settling tanks, emphasizing factors such as dimensions, flow rates, and structural considerations.

Circular Settling Tank Design

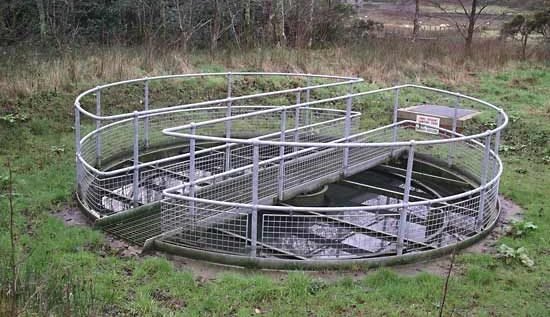

Circular settling tanks are widely used due to their efficient use of space and simplicity. They typically feature a radial flow pattern where water enters through the center and exits along the perimeter. This design helps to maximize sedimentation efficiency by minimizing short-circuiting.

The weir overflow rate is critical in circular designs, often ranging from 10,000 to 20,000 gallons per day per foot. Maintaining proper weir loading ensures optimal settling by managing flow rates and preventing turbulence. The diameter of these tanks can affect performance, as larger diameters promote better settling by reducing velocities.

Some circular tanks may include mechanisms like scrapers to remove settled solids continually. These enhance performance by preventing the re-suspension of solids. Moreover, covering tanks may help reduce algal growth and evaporation, further improving the system’s efficiency.

Rectangular Settling Tank Considerations

Rectangular settling tanks are known for their straightforward design and ease of construction. They primarily use a plug flow pattern, encouraging solids to settle as water progresses linearly from the inlet to the outlet.

These tanks require careful consideration of length-to-width ratios. A balanced ratio helps maintain consistent flow and sedimentation rates. Tube settlers can be added to improve efficiency by allowing for shorter settling distances, enhancing particle removal.

Sludge collection is usually facilitated by mechanical scrapers or chains, moving settled solids to a hopper. Attention is needed for sludge removal processes to ensure consistent tank performance. Implementing proper maintenance and monitoring protocols is essential for effective operation.

The Settling Process

Settling in wastewater treatment involves the separation of solids from liquid in a tank, improving water clarity and quality. This process is influenced by various factors that determine its effectiveness.

Mechanics of Settling

The mechanics of settling involve different phases, with suspended particles gradually sinking to the bottom of the tank. This happens due to gravity and the reduced flow rate of water in settling tanks. These tanks are designed to slow down water movement.

Gravity settling occurs when particles, heavier than water, start to descend. As they fall, a layer of sludge forms at the tank’s bottom. This layer can then be removed or processed further, ensuring clean water is discharged.

In addition to gravity’s effect, retention time plays a crucial role. The longer the water stays in the tank, the more effective the settling process can be. Optimizing the space and structure of the tank can increase efficiency. Moreover, the tank’s design helps maintain low turbulence, allowing particles to settle without disturbance.

Factors Influencing Settling Efficiency

Several factors influence settling efficiency. Particle size and density are primary considerations. Larger and denser particles settle more quickly than smaller, lighter ones.

The flow rate of water also impacts efficiency. A slower flow allows more particles to settle, enhancing the overall quality of the water. Adjusting flow rate can optimize the process.

Chemical treatments can alter particle characteristics to improve settling. Coagulants and flocculants may be used to increase particle size and enhance separation.

Oxygen levels in water can also affect settling. Properly managed oxygen levels help manage microbial activity, contributing to effective settling tank performance. Understanding these variables allows for better management of the wastewater treatment process.

Types of Wastewater Settling Tanks

Wastewater settling tanks play a critical role in the treatment process by allowing solids to separate from the water. Different types of tanks are used at various stages to handle different kinds of waste material. The main types are primary, secondary, and grit settling tanks, each serving a specific purpose in the system.

Primary Settling Tanks

Primary settling tanks are usually the first stop in the wastewater treatment process. They are designed to remove large solids and organic matter from the wastewater. As the water enters the tank, it slows down, allowing heavier solids like sand and dirt to settle at the bottom. These tanks can remove about 50-70% of suspended solids and 25-40% of biochemical oxygen demand.

A sludge layer forms at the bottom, and this is periodically removed and processed further. The clarified water, now with much less solid material, moves on to the next stage. Maintaining the correct temperature and flow rate is essential for effective operation.

Secondary Settling Tanks

Secondary settling tanks, also known as clarifiers, are used after biological treatment processes like activated sludge or trickling filters. Their primary purpose is to settle out the biological floc, which contains microbes that digest organic material. These tanks help in the removal of finer solids that were not captured in the primary tanks.

These tanks are circular or rectangular and may include mechanisms to scrape accumulated sludge off the bottom. The sludge is often recycled back to the biological treatment stage to maintain the needed microbial population. These tanks help improve the quality of the effluent before it is discharged or moves on to further treatment stages.

Grit Settling Tanks

Grit settling tanks are designed to remove heavy inorganic particles such as sand, gravel, and silt. These materials can damage pumps and other mechanical equipment if not removed early in the treatment process. These tanks are usually placed at the beginning of the treatment process, before the primary settling tanks.

The grit collected is disposed of separately to prevent accumulation and harm to the treatment facility. The tanks are often aerated or equipped with mechanical devices to enhance the separation process. Properly functioning grit tanks protect downstream operations and extend the life of the facility.

Sludge Management

Effective management of sludge in wastewater settling tanks is crucial for maintaining efficient treatment operations. This involves understanding how sludge accumulates in these tanks and implementing techniques for its removal.

Sludge Accumulation in Settling Tanks

In wastewater treatment, settling tanks play a key role by allowing solids to settle out from the liquid. This process results in the formation of sludge, which collects at the bottom of the tank. The type and amount of sludge can vary based on factors like the waste being treated and the operational conditions of the tank.

The accumulation of sludge in these tanks impacts system efficiency. Overaccumulation may lead to decreased settling capacity and increased risk of solids overflow. Regular monitoring of sludge levels is necessary to prevent these issues. For instance, sludge blankets are often measured to ensure they remain below a certain depth, optimizing tank function.

Sludge Removal Techniques

Removing sludge efficiently is important to keep settling tanks working properly. Common methods include mechanical devices like scrapers or pumps, which actively remove sludge from the bottom of the tanks. Gravity also aids in the separation, but mechanical methods speed up the process.

Vacuum trucks may be used to transport collected sludge to further processing or disposal sites. Advanced techniques, like dissolved air flotation, can enhance separation by injecting air into the mixture, allowing sludge to rise for easier removal. Additionally, thermal and chemical treatments may be employed to reduce sludge volume and facilitate its safe disposal. These techniques ensure that sludge management is both efficient and compliant with environmental regulations.

Settling Tank Maintenance and Cleaning

Regular upkeep and cleaning are crucial for the effective operation of settling tanks in wastewater treatment. Proper maintenance ensures efficiency, while thorough cleaning prevents blockages and malfunction.

Routine Maintenance Procedures

Routine maintenance is essential to avoid buildup and ensure smooth operation. Visual inspections should be conducted regularly to check for leaks, cracks, or any unusual wear and tear. Monitor the flow rates to ensure they’re within the design specifications, as abnormal rates can indicate blockages or leaks.

Checking the mechanical parts, such as mixers and pumps, is vital. Lubricate moving parts to reduce friction and wear. The sensors and gauges need regular calibration to ensure accurate readings. Maintain clear records of maintenance activities to track performance and scheduling.

Cleaning and Repair

Cleaning involves removing debris and sludge buildup to maintain tank capacity and efficiency. Empty the tank periodically using vacuum equipment or sludge pumps to prevent overflow or blockages. Tank surfaces should be scrubbed or pressure washed to remove stubborn residue.

Inspect the integrity of the tank during cleaning. Look for signs of corrosion or damage, especially in older models. Repair any cracks or leaks found during inspections to avoid contaminant escape. If parts are worn beyond repair, replace them promptly to prevent operational failure. Keeping cleaning schedules and repairs consistent ensures a long lifespan for the settling tank.

Applications and Case Studies

Settling tanks play a crucial role in various wastewater treatment processes. They are used to clarify grey water and handle industrial wastewater, ensuring efficient treatment and environmental protection.

Grey Water Treatment

In grey water systems, settling tanks are essential for removing solids and impurities. These tanks separate suspended particles from water, using techniques like gravity sedimentation. A grey water settling tank helps improve water clarity and prevents pipes from clogging.

The design of these tanks considers factors like inflow rate and tank capacity to optimize solid removal. Another benefit is that they reduce the need for chemical treatments, making the process more sustainable. This process is vital in households and small communities aiming to reuse grey water for non-potable purposes.

Industrial Wastewater Examples

Industrial settings often produce wastewater that needs significant treatment before release. Settling tanks in these scenarios are instrumental in removing industrial solids. They provide a first step in a multi-stage treatment process, where solid particles are settled out before further chemical or biological treatment stages.

The final settling tank is often part of these systems, needed to clarify water after biological treatment. Using both primary and final settling tanks ensures that industries can meet regulatory standards for effluent quality. Industrial wastewater management relies on these systems to minimize environmental impact and maintain compliance.

Settling Tank Performance and Optimization

Settling tanks play a crucial role in treating wastewater by removing suspended solids. Evaluating efficiency and exploring improvements are key to optimizing their performance. This involves assessing factors like overflow rate and making design adjustments to meet desired treatment goals.

Evaluating Settling Tank Efficiency

Evaluating the performance of a settling tank involves checking several factors. Overflow rate is crucial. If the water leaves the tank too fast, solids may not settle effectively. Typically, for efficiency, weir overflow rates are designed between 10,000 to 20,000 gallons per day per square foot. Additionally, the shape of the tank, whether rectangular or cylindrical, can impact performance.

The solid retention time and sludge return rate are also important. Tracking these helps determine how well the tank is functioning. Regular monitoring ensures the tank operates within design specifications. Visual inspections are also useful for spotting signs of excessive wear or hydraulic overload.

Improvement Strategies

Improving settling tank performance often starts with adjusting operational settings. Controlling the flow rate can prevent overloading and increase settling efficiency. Increasing the dimensions of the tank, such as adding depth, can also help accommodate more capacity and improve sludge removal.

Other strategies include optimizing the sludge return system. In return activated systems, adjusting the process based on the incoming load can enhance results. Mechanical improvements, like better inflow distribution, can also boost efficiency. Regular maintenance and timely upgrades are essential actions to ensure optimal tank performance.

Regulations and Standards

Settling tanks in wastewater treatment systems must adhere to specific regulations and standards. These guidelines ensure the proper operation and maintenance of the tanks, aiming to protect both the environment and public health.

Local and National Guidelines

Local and national regulations for settling tanks vary significantly. In the United States, the Environmental Protection Agency (EPA) sets strict guidelines for wastewater treatment facilities. These guidelines focus on water quality standards, permitting requirements, and discharge limits. The Clean Water Act is a key piece of legislation that controls the release of pollutants into waters and maintains wastewater infrastructure.

Cities and states may have additional requirements affecting settling tank design and operation. These include installation permits and regular inspections. Facilities must also adhere to local building codes that can impact the construction of wastewater infrastructure. Compliance with these parameters is crucial for avoiding legal issues and ensuring optimal tank performance.

International Standards

Internationally, standards for settling tanks are influenced by organizations like the International Organization for Standardization (ISO). ISO provides guidelines for environmental management, including wastewater treatment processes. ISO 14000 series is one such group of standards that applies to environmental systems.

The European Union has its own set of directives, like the Urban Waste Water Treatment Directive, setting requirements for the collection and treatment of urban wastewater. These standards focus on reducing environmental impact and ensuring treatment facilities meet certain performance criteria.

Different regions may adopt and adapt these international standards to fit local needs, ensuring that wastewater treatment is efficient, safe, and sustainable across the globe.
