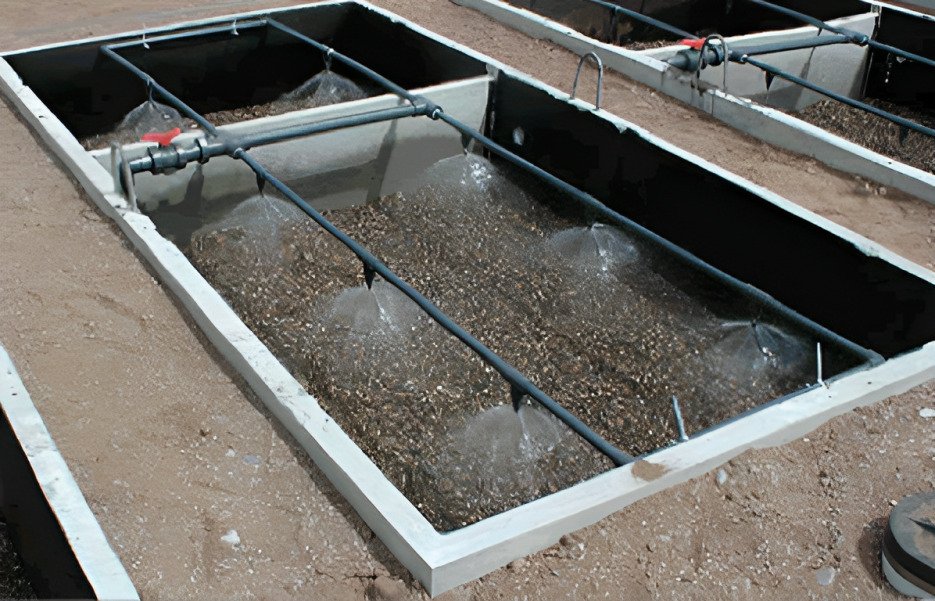

Slow Sand Filtration: An Efficient Water Purification Method

Slow sand filtration is a simple yet effective method for cleaning water. It uses layers of sand to remove contaminants as water slowly passes through. This process mimics nature’s own way of purifying water in streams and rivers.

Slow sand filtration can remove up to 99.9% of bacteria and viruses from water, making it safer to drink. The system works by forming a thin layer of microorganisms on top of the sand. This layer, called the schmutzdecke, helps trap and break down harmful particles in the water.

The filtration rate in slow sand systems is much lower than in other types of filters. This slow pace allows for better removal of impurities. The system needs little maintenance and can work well in areas with limited resources.

Key Takeaways

• Slow sand filtration removes contaminants using layers of sand and beneficial microorganisms
• The system requires minimal maintenance and is effective in areas with limited resources
• It can remove a high percentage of harmful bacteria and viruses from water

Basics of Slow Sand Filtration

Slow sand filtration is a simple yet effective method for water treatment. It uses natural processes to remove contaminants and improve water quality.

Definition and Principles

Slow sand filtration is a water purification technique that uses a bed of fine sand to filter out impurities. Water slowly passes through the sand, which traps particles and microorganisms.

Read moreCirculator Pumps: Essential Tools for Efficient Fluid Circulation

The top layer of sand, called the schmutzdecke, is the most important part. It contains bacteria and other microorganisms that break down contaminants. This biological layer forms naturally over time.

Slow sand filters typically operate at low flow rates of about 0.4 meters per hour. This slow speed allows time for biological treatment to occur.

Historical Development

Slow sand filtration has been used for over 200 years. It was first developed in the early 1800s to improve drinking water quality in cities.

The first large-scale slow sand filter was built in London in 1829. It helped reduce cholera outbreaks by removing harmful bacteria from water.

Many cities adopted slow sand filtration in the late 19th and early 20th centuries. It played a key role in improving public health and reducing waterborne diseases.

Components of a Slow Sand Filter

Read moreRotating Biological Contactors: An Overview of Wastewater Treatment Efficiency

A typical slow sand filter has several layers:

1. Supernatant water: The raw water that sits above the sand bed
2. Sand bed: The main filtering layer, usually 0.6-1.2 meters deep
3. Gravel layer: Supports the sand and allows filtered water to flow out
4. Underdrain system: Collects the filtered water

The sand used is usually fine, with a grain size of 0.15-0.35 mm. The uniformity of the sand is important for proper filtration.

Slow sand filters may also include flow control valves and a way to regulate the water level above the sand. Some designs add a layer of activated carbon to remove organic compounds.

Design and Construction

Slow sand filtration systems require careful planning and specific components to function effectively. The design focuses on key elements that ensure proper water treatment and flow.

Filter Materials and Dimensions

Sand is the main filter material in slow sand filtration. The sand bed should be 3 to 4 feet deep. Fine sand with an effective size of 0.15 to 0.35 mm works best. The uniformity coefficient of the sand should be less than 3.

Read moreEmerging Contaminants: What Water Professionals Need to Know - Key Insights for Safe Water Management

A gravel layer beneath the sand supports the filter bed. This layer is usually 1 foot thick with graded sizes from coarse at the bottom to fine at the top.

Filter boxes are typically rectangular and made of concrete. Their size depends on the required water output. A typical box might measure 30 feet by 30 feet.

Flow Control Mechanisms

Flow control is crucial for proper filtration. The system uses inlet and outlet valves to manage water flow. Inlet valves control the raw water entering the filter.

A constant water level above the sand is maintained, usually 3 to 5 feet deep. This depth provides the right pressure for filtration.

Outlet valves regulate the filtered water flow. They ensure a steady filtration rate, typically between 0.1 to 0.3 meters per hour.

Underdrain Systems

The underdrain system collects filtered water and supports the filter media. It consists of perforated pipes or a false floor design.

Perforated pipes are laid in a herringbone pattern at the bottom of the filter. They have small holes to allow water through while keeping sand out.

A false floor design uses concrete blocks with small channels. This creates a large collection area for filtered water.

The underdrain leads to a clear well where the filtered water is stored before distribution. This well allows for final quality checks before the water enters the supply system.

Operational Mechanics

Slow sand filtration requires careful management of starting, stopping, and maintenance procedures. Operators must follow specific steps to ensure optimal performance and address common issues that may arise.

Starting and Stopping Procedures

To start a slow sand filter, operators gradually fill it with water from the bottom up. This process, called ripening, allows beneficial microorganisms to grow on the sand grains.

The ripening period typically lasts 1-2 weeks. During this time, the filtration rate increases slowly to prevent disrupting the developing biological layer.

When stopping a filter, operators lower the water level to just above the sand surface. This keeps the biological layer moist and alive.

Restarting after short breaks is simple. For longer shut-downs, operators may need to scrape and replace the top sand layer before restarting.

Maintenance Requirements

Regular maintenance is crucial for slow sand filters. The most important task is cleaning the filter surface.

Operators remove the top 1-2 cm of sand when flow rates decrease significantly. This is usually done every few weeks to months, depending on raw water quality.

The removed sand is washed and stored for later use. Fresh sand is added to maintain the proper filter depth.

Other maintenance tasks include:

• Checking water levels and flow rates daily
• Inspecting underdrains and outlets for clogs
• Monitoring filtered water quality
• Cleaning surrounding areas to prevent contamination

Troubleshooting Common Issues

Slow sand filters can face several operational challenges. Here are some common issues and solutions:

1. Decreased flow rate:
   • Cause: Clogged surface layer
   • Solution: Clean top sand layer or increase head pressure
2. Poor effluent quality:
   • Cause: Inadequate biological layer or breakthrough
   • Solution: Allow more ripening time or reduce filtration rate
3. Algae growth:
   • Cause: Sunlight exposure
   • Solution: Cover filter or add pre-treatment
4. Uneven filtration:
   • Cause: Improper sand distribution or cracks
   • Solution: Level sand surface and repair any cracks
5. Sudden breakthrough:
   • Cause: Channeling in filter bed
   • Solution: Rake surface and possibly replace some sand

Operators should monitor these issues closely and take prompt action to maintain filter efficiency.

Performance and Efficiency

Slow sand filtration is a reliable water treatment method. It removes contaminants effectively and produces high-quality water. The process depends on several key factors for optimal performance.

Filtration Rate Metrics

The filtration rate of slow sand filters typically ranges from 0.1 to 0.2 cubic meters per square meter per hour. This slow rate allows for thorough water treatment.

Operators measure the filtration rate in meters per hour or gallons per minute per square foot. They adjust the rate based on water quality and filter conditions.

A lower rate often leads to better water quality. But it also means less water is treated. Operators balance these factors for optimal performance.

Quality of Treated Water

Slow sand filtration produces high-quality water. It effectively removes:

• Bacteria (up to 99.9%)
• Viruses (up to 99%)
• Protozoa (up to 99.99%)
• Turbidity

The process also reduces:

• Taste and odor compounds
• Some dissolved organic matter

Water quality improves as the filter matures. The biological layer on top of the sand plays a crucial role in contaminant removal.

Factors Affecting Filtration Efficiency

Several factors impact the efficiency of slow sand filters:

1. Sand grain size: Finer sand generally leads to better filtration but slower flow rates.
2. Water temperature: Warmer temperatures support more biological activity, improving efficiency.
3. Filter depth: Deeper filters provide more surface area for treatment.
4. Influent water quality: Highly turbid water can clog the filter faster.
5. Maintenance: Regular cleaning and sand replacement maintain filter performance.

Operators monitor these factors closely. They make adjustments to ensure optimal filtration efficiency and water quality.

Applications and Adaptations

Slow sand filtration has diverse uses in water treatment. It works well in small towns, big cities, and emergency situations. The method can be adapted to fit different needs and settings.

Rural and Remote Implementations

Slow sand filtration is great for rural areas. It needs little power and few chemicals. This makes it perfect for places with limited resources.

The filters can be built using local materials. Sand and gravel are often easy to find. Local workers can learn to run and fix the filters.

These systems can clean water for small villages or farms. They remove harmful germs and dirt from water. This gives people safe, clean water to drink.

Urban Water Treatment Solutions

Cities also use slow sand filtration. It can clean large amounts of water for many people. Some big cities have used this method for over 100 years.

Urban plants often use bigger filters. They might have many filters working together. This lets them clean more water faster.

The filters can handle changes in water quality. This is helpful in cities where river water can get dirty after rain. The filters slowly adapt and keep working well.

Adaptation for Emergency Situations

Slow sand filters can be quickly set up after disasters. They can provide clean water when normal systems fail. This helps stop the spread of diseases.

Small, portable filters can be made for emergency use. These might use buckets or barrels. They can clean enough water for a family or small group.

Aid workers can teach people how to use these filters. This gives communities a way to get clean water on their own. The filters can work for months or years if cared for properly.

Regulations and Guidelines

Slow sand filtration systems are subject to various regulations and standards to ensure safe drinking water production. Guidelines exist at both national and international levels to govern the design, operation, and maintenance of these filtration systems.

National Standards

In the United States, the Environmental Protection Agency (EPA) sets standards for slow sand filtration as part of the Surface Water Treatment Rule. These standards require:

• Filtration rates between 0.05 to 0.1 gallons per minute per square foot
• Minimum sand bed depth of 30 inches
• Effective sand size between 0.15 to 0.35 millimeters

State-level agencies may impose additional requirements. For example, some states mandate regular testing of filtered water for turbidity and bacterial content.

Operators must keep detailed records of filter performance and maintenance activities. This includes tracking flow rates, head loss, and cleaning schedules.

International Protocols

The World Health Organization (WHO) provides guidelines for slow sand filtration in developing countries. These focus on:

• Simple design principles for community-scale systems
• Use of locally available materials for filter construction
• Training programs for local operators

European standards often emphasize:

• Removal of organic material and pesticides
• Integration with other treatment processes like activated carbon filtration

Many countries have adopted performance-based standards. These set targets for water quality rather than prescribing specific design parameters.

Regular monitoring of filtered water quality is a common requirement across international protocols. This helps ensure the ongoing effectiveness of slow sand filtration systems.

Future Developments

New technologies and analysis methods are improving slow sand filtration. These advances make the process more effective and efficient for cleaning water.

Innovations in Material Science

Scientists are developing new filtration materials to enhance slow sand filters. Advanced materials can remove more contaminants, including “forever chemicals” like PFAS.

Researchers are exploring nanotechnology to create better filter media. Nanomaterials may trap smaller particles and break down complex pollutants.

Some teams are testing bioengineered materials for filtration. Modified plant tissues, like treated sapwood, show promise for removing bacteria and viruses from water.

Data-Driven Performance Analysis

Water treatment plants are using sensors and data analytics to monitor slow sand filters. This tech tracks filter performance in real-time, helping operators spot issues quickly.

Machine learning algorithms can predict when filters need cleaning or replacement. This prevents unexpected breakdowns and keeps water flowing.

Digital twins of filtration systems let engineers test improvements virtually. They can model different scenarios to find the best filter designs and operating conditions.

Remote monitoring allows experts to oversee multiple filtration sites from one location. This improves efficiency and brings specialized knowledge to rural areas.
